A.G. Franz, LLC

novotronik Products

novotronik Signalverarbeitung und Systemtechnik GmbH

novotronik designs and manufactures RF signal processing equipment and system technology, including wide-band matrices, RF switches and multicouplers for satellite, aerospace and wireless applications (EN 9100 certified).

A.G. Franz, LLC provides the following products:

Matrices

High-frequency (10 KHz - 20 GHz) matrices and crossbar switches with GUI

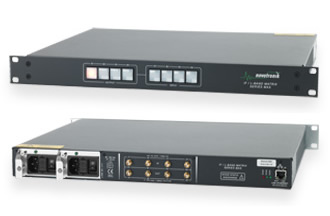

novotronik IF-, L-Band Matrix
  • blocking and non-blocking
  • 4x4 to 32x32 input/output connections
  • Radio reconnaissance – fast and reliable
  • Individual configurations
  • Extremely high dynamic range
  • Ultra wideband matrix systems - 20-6000 MHz
  • Datasheets for Typical Configurations
    • MAS2291 - 32x2 Matrix, for analyzing L-Band signals
    • MAS4332 - 8x8 TX Matrix, 200-400 MHz
    • MAS4342 - 8x8 RX Matrix, 200-400 MHz
    • MAS4454 - 4x4 RX Matrix, 20-3000 MHz
    • MAS4488 - 8x8 RX or TX Matrix, 20-3000 MHz
    • MAS4489 - 8x8 RX or TX Matrix, 20-4200 MHz
    • MAS4477 - 8x8 RX Matrix, 950-2150 MHz
    • MAS4485 - 8x8 Matrix, 20-200 MHz
    • MAS6048 - 4x8 Matrix, 20-6000 MHz
    • MAS6420 - 8x16 Matrix, 20-4000 MHz

Switching Units

with active and passive Components for Redundancy Applications, Monitoring and Control, EMC Measurements, and Automatic Testing Systems

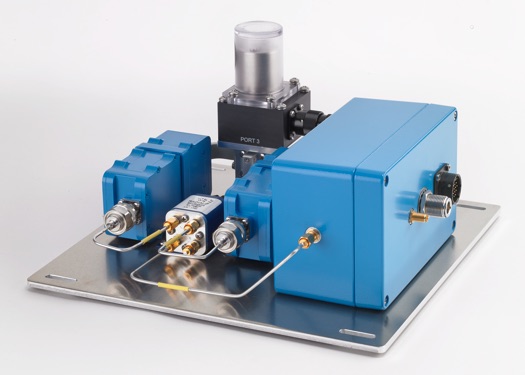

novotronik ka-band redundancy switchover system external unit
  • For safeguarding important signals in satellite ground stations
  • Coaxial relay for optimum HF values
  • Integration for the control and monitoring of external devices
  • Ka-Band
  • Datasheets for Typical Configurations

Multicouplers

Lower Frequency and Radio Frequency, VHF/UHF, IF, L-Band, Microwave

novotronik VHF/UHF Multicoupler - GTA2300.8
  • High-frequency (1 KHz - 20 GHz) RF signal splitter with 1-4, 1-16 and 1-32 outputs for active and passive signal distribution in modern receiver systems
  • Datasheets for Typical Configurations
    • GTA5030 - Multicoupler 1:4 or 1:8, 0.01-30 MHz
    • GTA3650 - Multicoupler 1:8, 1 kHz-60 MHz
    • GTA2300.8 - Multicoupler 1:8, 20-3000 MHz
    • GTA0591 - Multicoupler 3 channels, 1:4, up to 3000MHz
